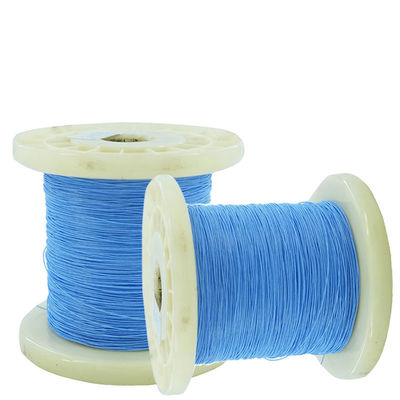

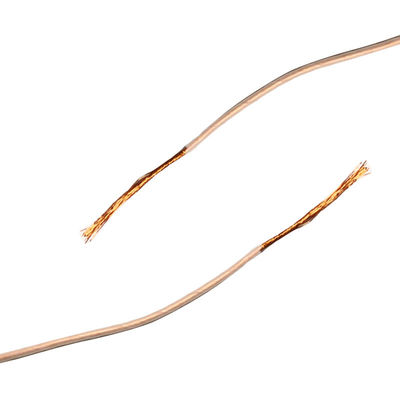

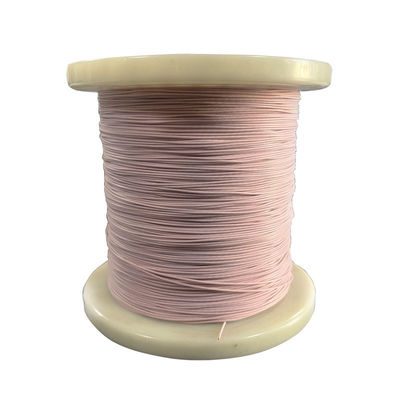

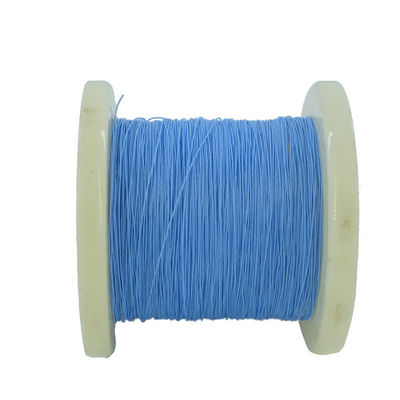

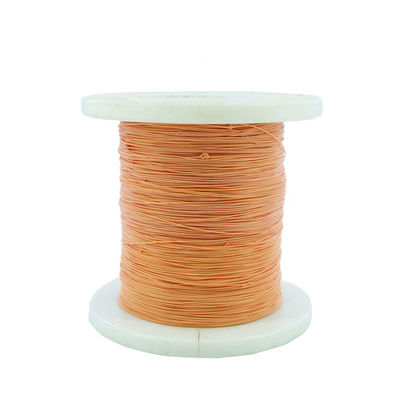

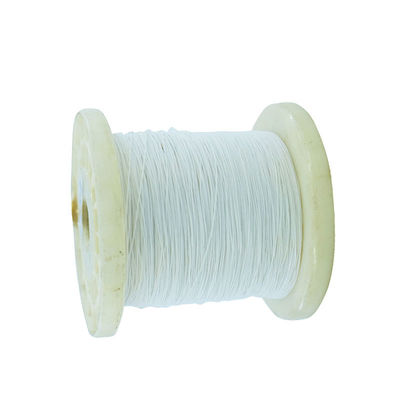

42/0.08mm Bare Stranded Copper PTFE Tape Wrapping Wire
PTFE wrapping wire is a high-performance electrical wire insulated with polytetrafluoroethylene (PTFE), a synthetic fluoropolymer with exceptional thermal and chemical resistance. Ideal for demanding applications in aerospace, medical devices, and electronics, this wire offers superior protection against heat, moisture, and chemicals while maintaining excellent flexibility for easy handling and installation.
Key Features
- Excellent corrosion resistance
- Resistant to oils, strong acids, alkalis, and oxidants
- Superior electrical insulation properties
- High voltage and moisture resistance
- Flame-retardant and anti-aging
- Long service life
Specifications
| Conductor Materials |
Silver Plated Copper or Bare Copper |
| Conductor Type |
Stranded or Solid |
| Insulation |
PTFE, FEP, PFA Insulated |
| Number Core |
Single Core or Multiple Cores |
| Size |
0.05~4mm² |
| Rated Voltage |
600V or Below |
| Rated Temperature |
-80~+200ºC |
| Color |
White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
Product Types
| Type |
Name |
| AFR-200 |
Bare Copper wire conductor PTFE film insulated lead wire |
| AFR-250 |
Silver plated copper wire conductor PTFE film insulated lead wire |
| AFP |
Bare Copper wire conductor PTFE film insulated screen lead wire |
| AFP-1 |
Silver plated copper wire conductor PTFE film insulated screen lead wire |
| AFRP-200 |
Bare Copper wire conductor PTFE film insulation shield lead wire |
| AFRP-250 |
Silver plated wire copper conductor PTFE film insulation shield lead wire |
| AFRPF-250, AFPF |
Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire |
Cable Structure
| Wire Gauge |
Cross-section area |
Conductor structure |
Max.OD of wire |
Reference weight kg/km |
| 36AWG |
0.013 |
7/0.05 |
0.57 |
0.44 |
| 32AWG |
0.035 |
7/0.08 |
0.67 |
0.73 |
| - |
0.05 |
10/0.08 |
0.72 |
0.91 |
| - |
0.07 |
14/0.08 |
0.75 |
1.16 |
| - |
0.1 |
21/0.08 |
0.85 |
1.57 |
| 26AWG |
0.12 |
24/0.08 |
0.85 |
1.66 |
| - |
0.14/0.15 |
30/0.08 |
0.9 |
2.07 |
| 24AWG |
0.2 |
42/0.08 |
1 |
2.72 |
| - |
0.25 |
56/0.08 |
1.1 |
3.47 |
| 22AWG |
0.3 |
62/0.08 |
1.18 |
4.2 |
| - |
0.35 |
75/0.08 |
1.2 |
4.7 |
| 20AWG |
0.5 |
63/0.1 |
1.45 |
5.36 |
| - |
0.75/0.80 |
91/0.1 |
1.69 |
8.19 |
| 18AWG |
1 |
56/0.15 |
1.95 |
10.9 |
Note: Extruded PTFE cable core numbers and specifications are not limited to the above regulation and can be customized.
About Xiangtan Shenzhou Special Cable Co., LTD
A trusted wire and cable supplier to China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, ensuring superior quality and competitive pricing. Our product range includes high-temperature wires, PTFE, FEP, PFA, and ETFE wires, fluoroplastic cables, hook-up wires, electronic cables, and power cables. With advanced production facilities and strong partnerships with universities and research institutes, we offer customized cable solutions.
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer, researching, developing, and selling military and consumer cable wire and cable compounds. The company is located in Hunan Province, China.
2. What is your company's strengths?
We are a stable wire and cable supplier to China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, which allows us to maintain superior quality and competitive pricing for our global customers.
3. How do you guarantee your product quality?
Quality is our top priority. We implement strict quality control measures throughout the entire process - from design and materials procurement to manufacturing, semi-finished product testing, and final product inspection.
4. What's the warranty of your products?
We provide a 1-year complete warranty service. If products have quality problems, we will replace or return them unconditionally.
5. How can I get the samples?
We can prepare sample orders for you. If the sample quantity is small and available in our stock, we can provide them for free, with the customer responsible for shipping costs.
